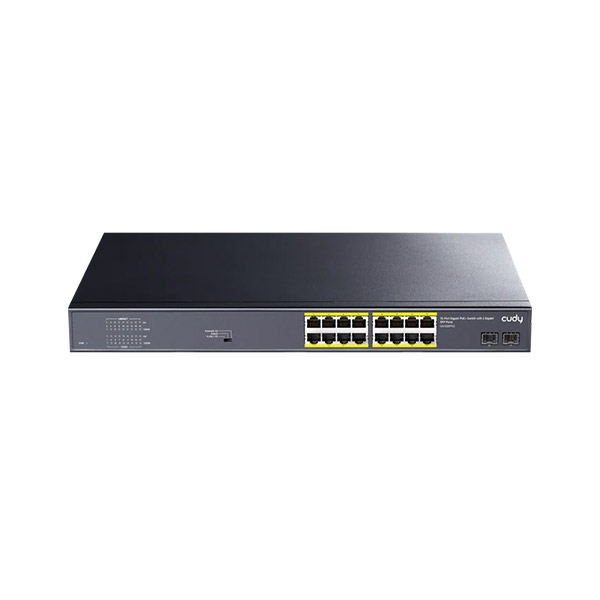

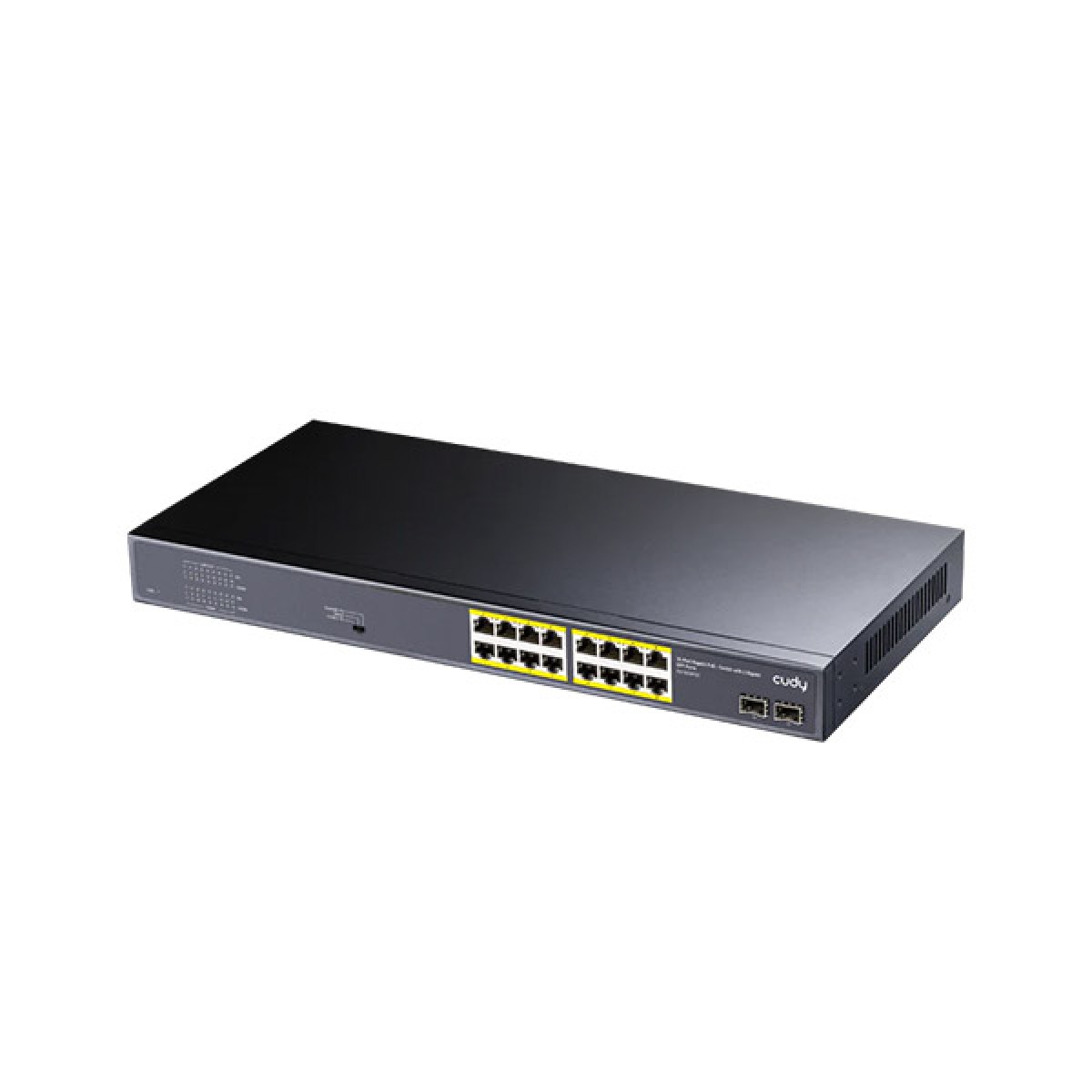

Cudy GS1020PS2 16-Port Gigabit PoE+ Switch
Brand: Cudy
Item Code: GS1020PS2
color: Black (As given Picture)

Interfaces:
Physical Buttons: VLAN/Default/Extend DIP Switch
PoE+ Ethernet Ports: 16× GbE
Uplink Ethernet Ports: 2× SFP
Extend Mode Ports: #9~#16
VLAN Mode Ports: #1~#16
LED:
Power
Speed/Link/ACT of Each Ethernet Port
Power Input: AC Inlet

Power:
Power Methods: AC
AC: 100-240V 50/60Hz
Idle Power Consumption (W): 10
Max Power Consumption (W): 200

Mechanical:
Installation:
Desktop
Rackmount via Brackets

Casing Material: Metal

Dimension:
440×204×44 mm
17.32×8.03×1.73 inches

Package Content:
Main Product
Power Cord
Mounting Kit
Installation Guide

Model Version:
GS1020PS2 2.0

Protocols:
802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
802.3ab 1 Gbps over Twisted Pair
802.3z 1.25 Gbps over Fiber
802.3x Flow Control
802.3af PoE
802.3at PoE

Performance:
Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
Max Forwading Rate: 26.78 Mpps
Max Switching Capcity: 36 Gbps
MAC Address Table: 8192
Jumbo Frame: 9.6 KB
Packet Buffer: 4 Mbit

Reliability:
Grounding Methods: Three-Prong Plug

Environment:
Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
